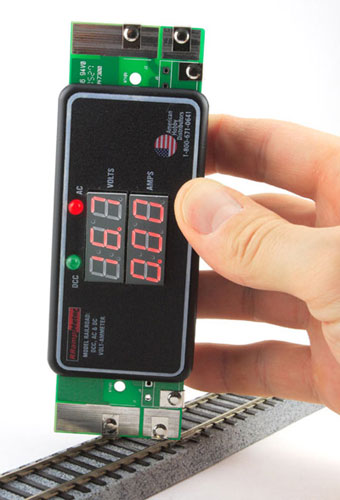

RRampmeter DCC Amp/Volt Meter
Version IV (Enclosed w/Clip Leads & Battery Backup for High Voltage)

RRamp It Up!

Get accurate measurements of DCC, DC and AC volts and amps on your layout with these meters.

Compatible with all scales, adjustable contacts permit direct track voltage measurements; no batteries are needed for use with DCC systems.

Use as a portable troubleshooting tool, or mount on control panel or fascia; rear screw terminals allow for easy connection to layout wiring.

Version IV is the same as Version III, but is but for large scale high voltage and current applications:

DCC: 38.6 v and 18-20 Amps

AC: 27.6 v and 18-20 Amps

DC: 38.6 v and 18-20 Amps

• Also measures AC and DC Volts/Amps
• Costs less than DVMs that cannot measure DCC
• Version I, II, & III rated at 6 Amps
• Version IV rated at 20 Amps
• Measures true RMS Volts/Amps, +/- 2%
• Suitable for all scales
• No batteries required
• Designed for left/right-hand use
• PCB length: 5.63"
• Enclosure length 4", width 2", height 1.25"
