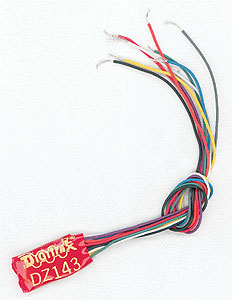

DZ143 Z Scale Mobile Decoder
(No Plug)

Also Good For HO And N Scale!

Download Manual

Features:

• Torque Compensation for smooth as silk silent operation
• 128 Speed Step operation (14 or 28 steps can also be used)
• Momentum with acceleration and deceleration
• Normal Direction of Travel is user selectable
• Switching Speed feature for easier and faster access to yard speeds
• 3 Step Speed Tables set start, mid and max voltage for custom control
• 28 Step Speed Tables with 256 level resolution for precise control.
• Scaleable Speed Stabilization (Back EMF) with simple setup & 256 level resolution
• SuperSonic™ motor drive for silent operation
• FX 3 Function outputs for prototypical lighting effects and on/off control
• Constant Brightness Lighting with directional or independent control
• Realistic Effects like Ditch lights, Mars lights, strobes, and many more
• FX 3 & Standard Function Qualifiers operate functions based on direction,
• F0 on or off, direction and F0, and whether loco is moving
• Function Remapping for custom function setup
• Master Light Switch turns off all lights & functions with one keystroke
• Advanced Consist Function Controls
• Decoder Lock equipped
• Transponder equipped ready for transponding on your layout
• All Mode Programming with Operations Mode Read Back reads back CV values right on the mainline
• Decoder Reset CV with or without speed table reset
• Motor Isolation Protection prevents damage to your decoder
• Basic, Advanced & UniVersal Consisting
• 2 Digit and 4 Digit Addressing
• Works with most DCC-ready Z, N, and HO scale locomotives up to 18V track voltage
• DCC Compatible
• FCC Part 15, Class B RFI compliant
• 1.25 Amp/2 Amp Peak 4 FX 3 Functions, 0.5 Amp
• Current Rating: 1.25 Amp (2.0 Amps Peak)
• Size: 0.36” x 0.55 x 0.13” (9.14mm x 19mm x 3.3mm)
• Installation: Wired
• Function Outputs: 4-500mA
• Function Type: FX3
• Features: Series 3
